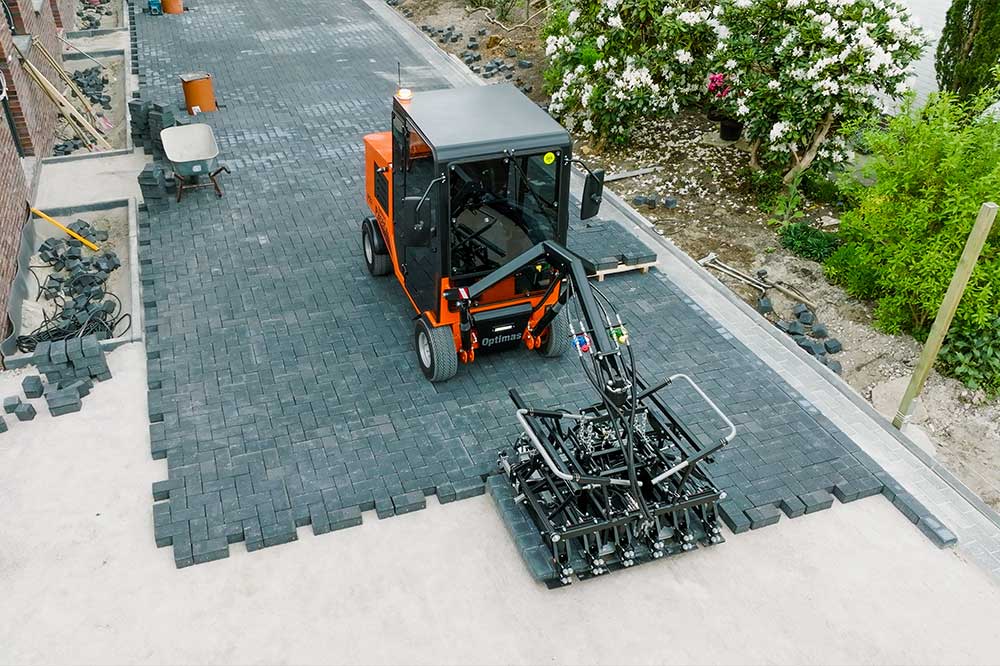

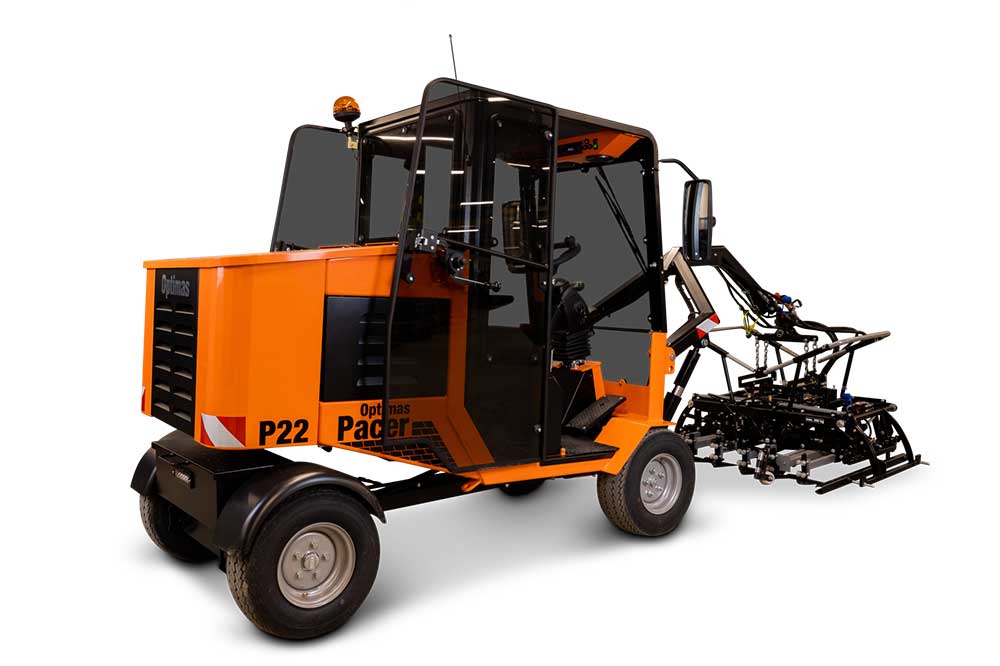

The PaveJet is agile, quiet and reacts smooth and faster to commands of the operator. With pride we can say: The Best & Most Modern designed Paver Laying machine ever!
Ergonomic....Ecological....Powerful....Aesthetic
At a Glance...

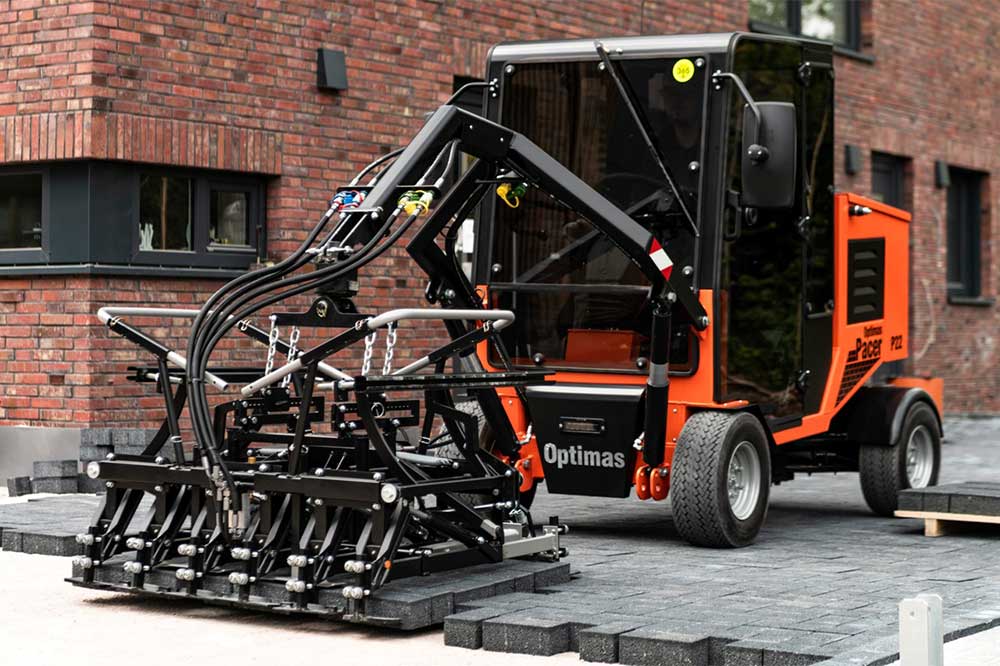

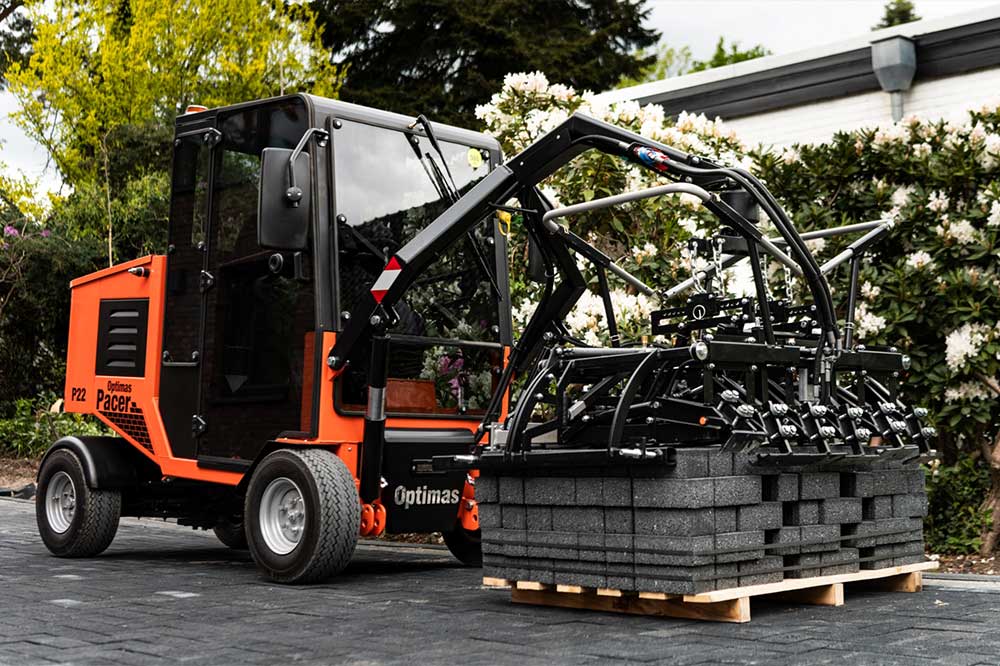

Automatic-Clamp - automatic adjustment of all 6 gripping arms to ideal gripping size
improved hydraulic functions ensure enhanced driving behavior - more sensitive, better dosage and easier operation ensure still better performance
LED-Light package incl. daytime running light
RPM counter - operator can easily determine the ideal engine performance (ideal torque at 2.200rpm) - thus less fuel consumption
Wide Tires
USB Charger
Rear-view Camera
To be an international market leader takes something special.
Our S19 paver laying machine represents the product of forty years of experience. We know what construction sites of all sizes need and remain in constant contact with end users to ensure that we meet all their needs.
The great majority of our paver laying machines are made-to-measure, so as to fulfill all customer needs in terms of clamp, cabin and finish.
Extremely fast, the S19 paver laying machine puts down paving with a top-quality finish in record time, thereby making for effective and satisfying working environment. With this machine you can lay over 11,000 ft² (1000 m²) per day!
Whether on small or large building sites, the perfect combination of a 2-axle pivot plate control and a continuous clamp rotation clamp gear makes for optimal working practices. Whether for operation in an underground car park or for taking stones from a height of 8' 6" (2.60 m) - everything is possible.
The reliability and effectiveness of the S19 makes worker shortages a thing of the past.
The advantages of the S19:
Simple operation with an open vehicle design.
The practical cabin* with a sinkable front windscreen for fresh air intake and good communication with other workers.
A comfortable air-sprung heated driver’s seat*, LED cabin lighting, an infinitely-variable heating system* and a large rear mirror (can be heated as an option).
Easy to operate with best results and low effort requirements; work up to 8-hour shifts in complete comfort.
A tried-and-tested geometry makes for great maneuverability.
Both stable and agile, even during an extreme change in the balance point.
Excellent illumination of the work area whether by day or night.
A long life span makes for quick return on your investment.
Great effectiveness for companies – makes for easy working.
The S19 is quick... with optimal site organization, the operator can lay pavers in 20-second cycles.
Can lay over 11,000 ft² (1000 m²) per day
The Optimas S19 – the only paver laying machine in the world with optional joystick steering
Our joystick steering integrated in an arm rest - an absolute highlight.
This feature relieves the driver when required to perform frequent working cycles and provides the following advantages:
Simple and intuitive operation
Simple and easy steering
Exceptional comfort and control
Free view of all lay edges (no steering column)
Relaxed sitting position
Less-tiring working practices
Technical data:
Height:
2.16 m (7'-1 1/2")
Length:
3.900 m (12' 9 1/2")
Width:
1.350 m (4' 5 1/8")
Weight:
1.300 kg (2,866 lbs)
Lifting capacity:
700 kg (1,543 lbs)
Other
4 cylinder, water-cooled diesel motor with electric heating, 17.4 kW (23.7 PS) (under 19 kW - can be used in environment zone), soundproofed, oil cooler; hydro-static drive with single pedal control, fully-hydraulic 2-axle pivot plate control, rear axle with single wheel pendulum suspension, hydro-static parking brake; 45 l diesel tank.
Multi 6 Paver Clamp
Item# 55353
Regular price
Multi 6 (paver clamp)
A paver clamp that moves full layers of product. This can be set to most pave stone formats, positions, and thicknesses with only a few actions and no need for special tools.
Description
Pave stone layers of 0,6 m² (6.5 ft²) to 1,5 m² (16 ft²) can be picked without a problem.
The Multi 6 paver clamp grips thin pave stones of 4.0 cm (1.57") up to thick 24.0 cm (9.44") pave stones and a range of pave stone layers weighing up to 550 kg (1,212 lbs).
The clamp can also pick uneven pave stones within reason.
The Multi 6 moves the pave stones into the running bond pattern easily, regardless of whether the rectangular paver has been laid correctly or not.
Can adjust running bond from 16.5 cm (6.5") to 10 cm (3.93")
Even anti-slip pave stones can be moved into the running bond pattern easily.
Pave stones in herring bone pattern with or without half stones are laid without problem.
Whether concrete or brick pavers, the clamp does its job.
The intelligent 6-arm clamping technology utilizes only 60 bar hydraulic pressure. Clamping protects the transport of the pave stones.
Production Rates
Using the Multi 6 Head to Lay Mechanically (2 Man Crew)
I usually average 37-45 seconds per layer
Even if I averaged 1 minute per layer that equates to 739.2 sq.ft. per hr.
That’s 5,913.6 sq.ft. in an 8-hr. day
Using the Multi 6 Head for Fronting (2 Man Crew)
I typically average 1 layer in 1 min 34 seconds
That’s 447.7 sq.ft. per hr.
3,582 sq.ft. in an 8-hr. day
2 Man Crew by Hand (1 Man Hauling from Pallet + 1 Man Laying)
They were able to install 1 layer in 2 min and 30 seconds
Let’s say they were able to maintain this pace all day
They would lay 24 layers in one hr.
That’s 295.68 sq.ft. per hr.
That’s 2,365.44 sf. in an 8-hr. day
(This would be a stretch I personally don’t know a 2-man crew that could maintain this production rate)
Our successful experience shows many of the Optimas paver clamps have already laid over 1,000,000 ft² of pavers without any trouble. This proves our worth and the advantages of products “Made in Germany.”
Single Pick Range:
0,6 m² (6.5 ft²) to 1,5 m² (16 ft²)
Stone Thicknesses:
4,0 cm to 24,0 cm (2.51" x 9.44")
Stone Weight:
1,212 lbs
Unladen Weight:
407 lbs
Hydraulic Pressure "Clamping":
60 bar
Pen to Paper:
Average hourly rate including labor burden: $53.00/hr. Plus 20% profit= $63.60/hr. *Please use your own numbers this is just an example*
I will not include profit in the exercise seeing it is not a fixed expense
One Employee cost for 8 month season:
9 Hour day ($53.00 x 8hr. = $424.00 + 1hr. OT. $79.50) Total = $503.50
Week ($503.50 x 5) Total = $2,517.50
Month ($2,517.50 x 4) Total = $10,070.00
8 Month work season ($10,070 x 8) Total = $80,560.00
Cost over 10 years = $805,600.00
Multi 6 Paver Laying Head
Cost = $21,895 (subject to change)
Shipping $600+-
Installation $1000.00+-
Total cost $23,495+-
Total cost divided by 10 years = $2,349.50/yr.
Divided by 8 months work season $293.69/month
Divided by 4 Weeks = $73.42/week
Divided by 5 days = $14.68/day
Divided by 9 hours = $1.63/hr
Excavator Expense *in many cases the machine is on site
New Excavator Average cost $60,000* (just an example use your own numbers if not comfortable with mine)
Subtract resale in 10 years $25,000 ($60,000 - $25,000) Total = $35,000
Maintenance $1,200/yr. x 10 yrs. = $12,000 + $35,000 Total = $47,000
Fuel $2,400/yr. x 10 yrs. = $24,000 + $47,000 Total = $71,000
A perfect, fully-automatic grader which can be adapted to all conventional inclines.
The Optimas PlanMatic, a leveling screed available as an attachment for wheel, skid and telehoist loaders, represents a fully-automatic mobile system for the safe, quick and efficient screed leveling work.
NEW– available in two basic widths
Basic width 1.40 m (4' 7 1/8")
Working range – 1.40 to 2.00 m (4' 7 1/8" to 6' 6 3/4")
Working range – 1.70 to 2.30 m (with two 0.15 m (5 7/8") widening extensions)
Working range – 2.00 to 2.60 m (with two 0.30 m (11 3/4") widening extensions)
Only one operating unit – a joystick with a large display – shows the relevant information.
Very simple operation.
Up to 46 carrier machine settings can be saved.
Press-button operation to move the leveling blade in the 0-position.
The system automatically recognizes the laser receiver or the ultrasound sensor.
A Leica receiver and Leica ultrasonic sensors as standard – the system is also compatible with other components from major manufacturers.
The Optimas PlanMatic performs leveling in both the forwards and reverse modes. Many operators distribute the material roughly (for height and sometimes even in the corners) in forwards movement, whilst achieving the exact height setting in the reverse movement. All system components (laser, transverse slope, ultrasonic) can be combined. The ultrasonic sensor automatically records the height of the ground, line or curbstone edge. Fully-automatic side flaps reduce correction work. The leveling screed can be controlled both manually and fully-automatic.
Typical deployment in road construction, park and industry surfaces, the leveling of equestrian, sport and tennis surfaces and the leveling of factory floors.
Advantages:
For wheel loaders, skid loaders, telehoist loaders and traction haulers (three-point front anchor)
Higher placement speeds
Low manpower requirements (1 person)
Low repair work
Leveling in forwards and reverse
Compact design means that it can be deployed in narrow sites and indoors.
Screeding in the corners
Simple operation - short training times
Placement in all substrate layers - even ballast
No need to use level bars
No expensive maintenance
Low transport requirements
All system components (laser, transverse slope, ultrasonic) can be combined
The side flaps are hydraulically adjustable
Quick assembly and disassembly (2 min.)
Quick-change unit for carrier machine (optional)
Ultrasonic sensor controls the opening and closing of the hydraulic side flaps automatically. No need for centimetre-precise driving along the line.
Hydraulic bottom dump shovel (optional): for forwards leveling or material transport as required.
Available with 3D control (optional)
Available with width extension sets 2x15 cm and 2x30 cm (optional)
Vacu-Lift H
Item# 51905
Regular price
Vacu-Lift H
The Vacu-Lift H is great for picking Granite, Bluestone, Wet Cast and Natural Stone using the vacuum hose lifter. Picks up to 300 pounds - Weight limits vary pending pad size & porosity of products.
This combination guarantees optimal logistics and economical working practices. It also protects the health of your staff.
Available with Hydraulic attachment for Loader.
Advantages:
Flexible deployment
Simple operation
Quick amortization
Healthy working practices
Motivated workers
A folding boom permits simple operation in a cramped environment e.g. against house walls or tree rows.
The mast can be hydraulically balanced in the blink of an eye to enable easy and exact positioning of heavy concrete elements in terrain.
