When it comes to installing pavers, accuracy is vital.

• Set the height of your base & sand up against a fixed edge
• Reduces the need for skilled grading labor by using a tool & system
• Easily adjustable
• Top tab is made for a magnetic torpedo level

NOTE: Different sized pavers will compact to various depths. Wider joints can also affect compaction. We suggest doing a small test section.

INSTRUCTIONS:

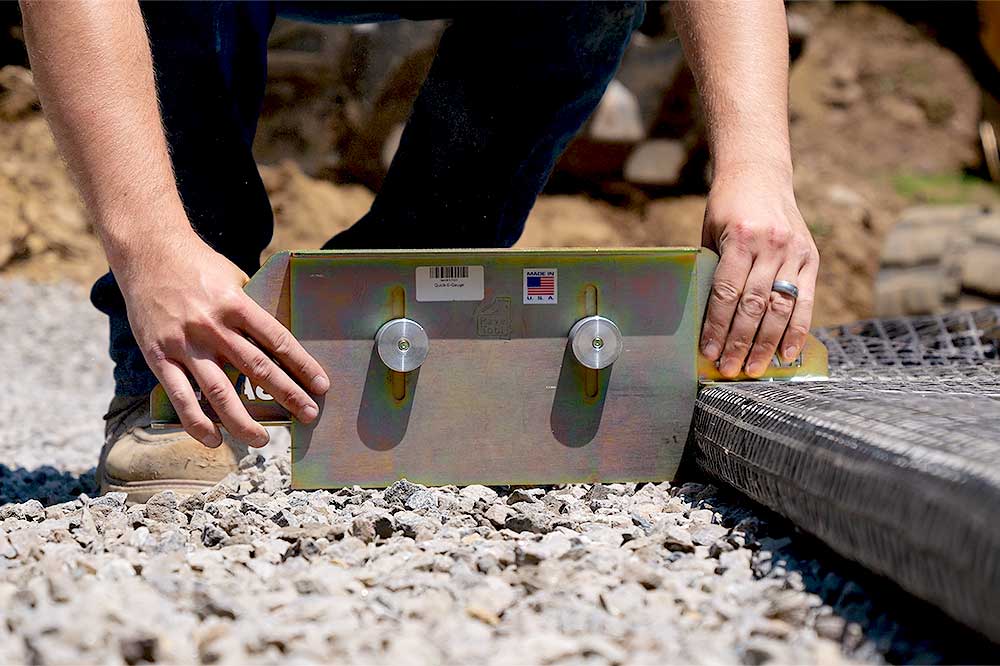

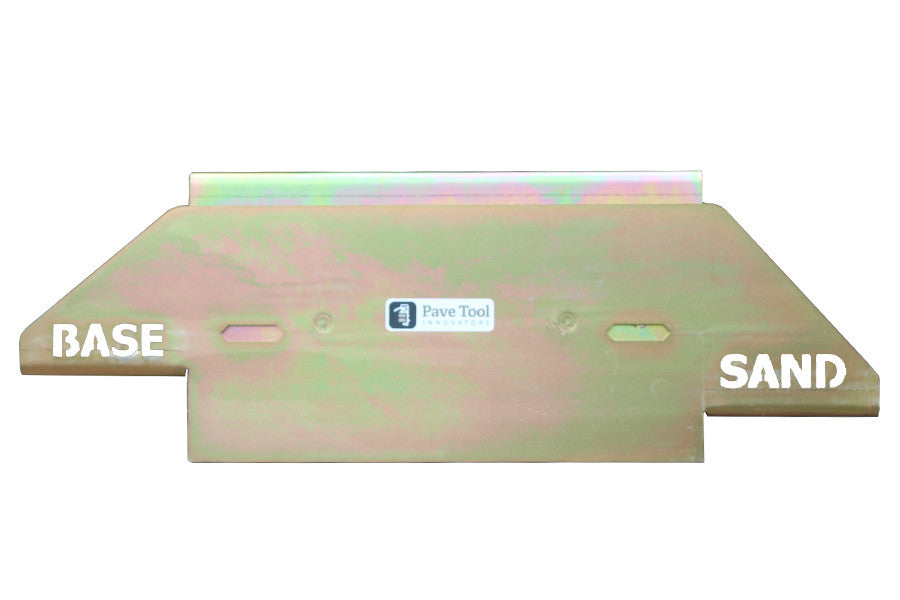

 After determining what thickness of paver you are using, simply loosen the knobs on the gauge and slide the plates up or down until the desired measurement (in millimeters) appears in one of the view panels. Line the points of the opposite window up with the mark that makes the two plates parallel. Bring your compacted base material close to its finished grade. Now place the side of the Quick-E-Gauge that says "BASE" onto the fixed surface you want to abutt. Strike off the gravel to produce a perfect final grade.

Next, set your 1" screed pipe, and check your height using the opposite side of the Quick-E-Gauge. The bottom of the sand side of the gauge should just touch the top of your screed rails. After the sand is roughly screeded, go back and use the "SAND" side of the gauge to be sure that your heights are perfect. Please note that the measurements are calculated for use with 1" screed rails. If you choose a different diameter screed rail, you will have to adjust the height of your Quick-E-Gauge accordingly.

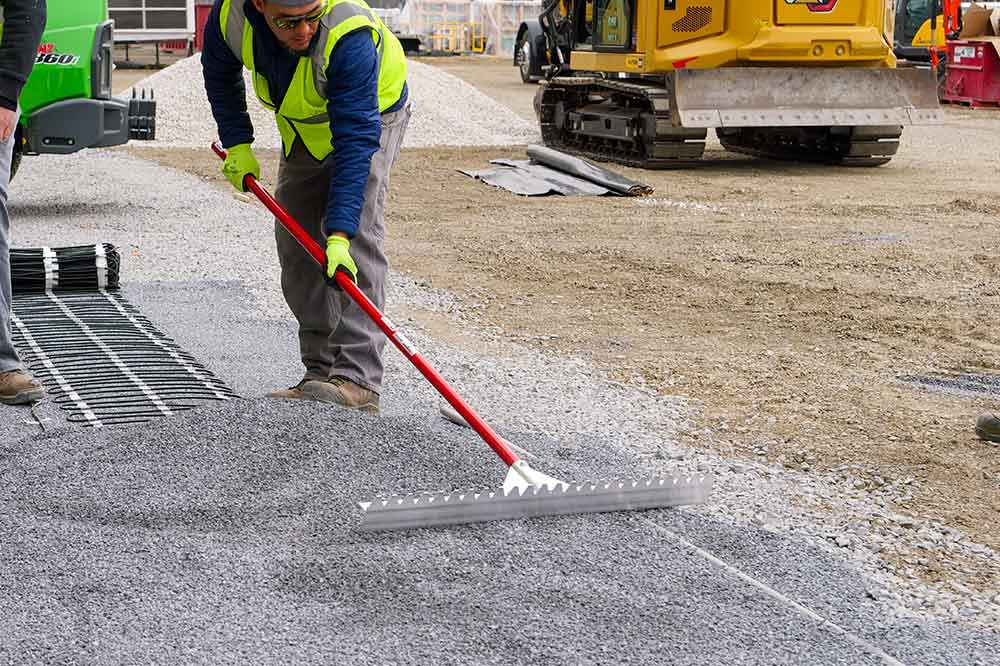

The ultimate base grading tool. Must have on your basing crew.

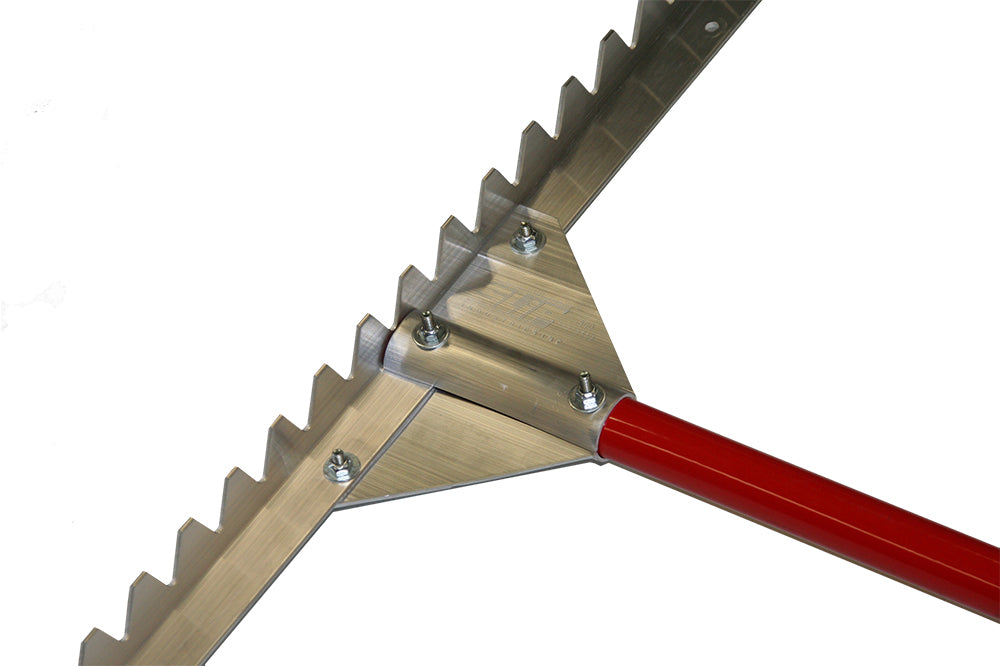

The Quick-E-Grade Rake brought to you by Pave Tool, manufactured by Slip Industries is a Made in America level that offers a quality tool you can count on!

• 36" wide
• Made of light-weight, durable extruded aluminum alloy
• One side serrated
• One side smooth

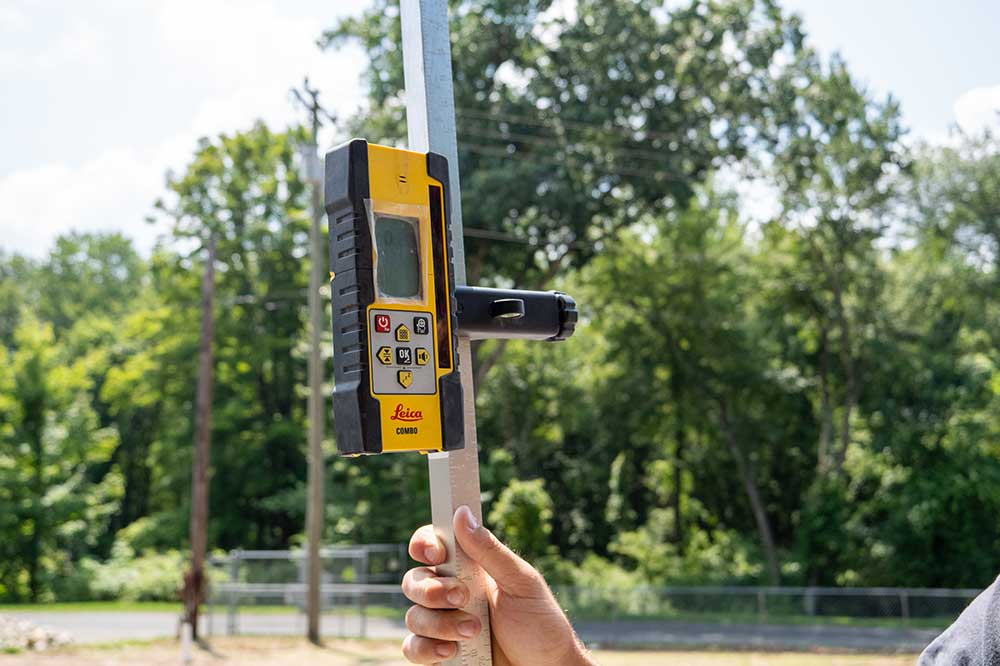

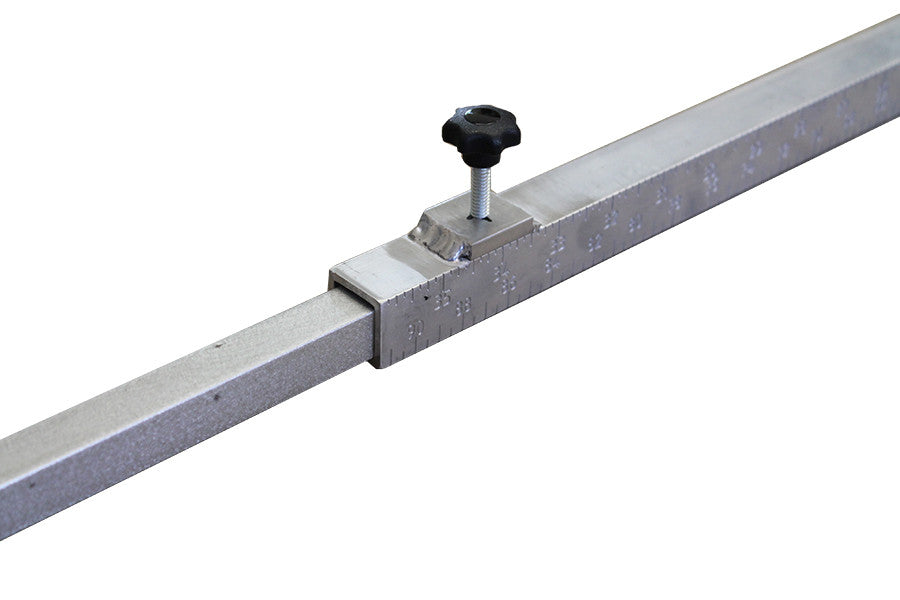

Build off a Grade Plan with Ease.

• Telescopic internal foot to allow contractors to set any given point on a job site to 0"
• Simplifies your math on the job site
• Quick & Easy to Adjust
• Able to go up to 72"

*Laser and Receiver not included

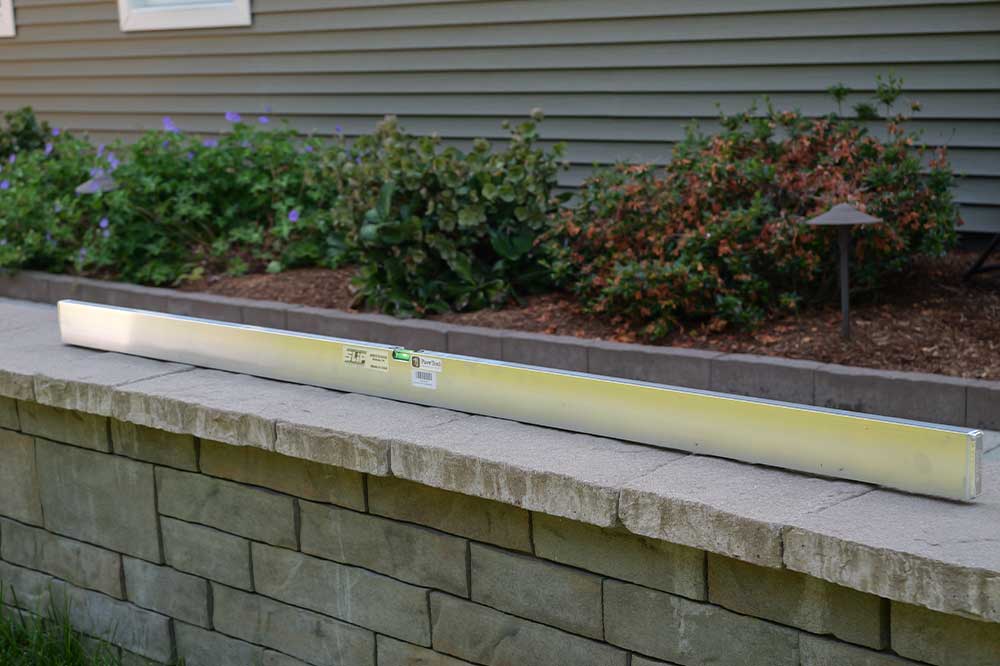

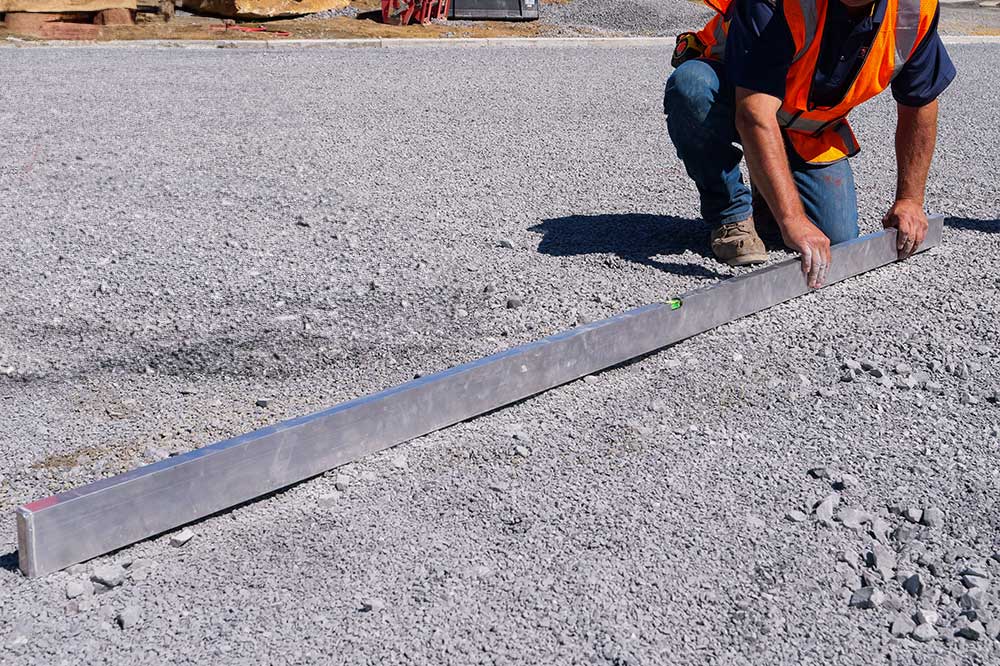

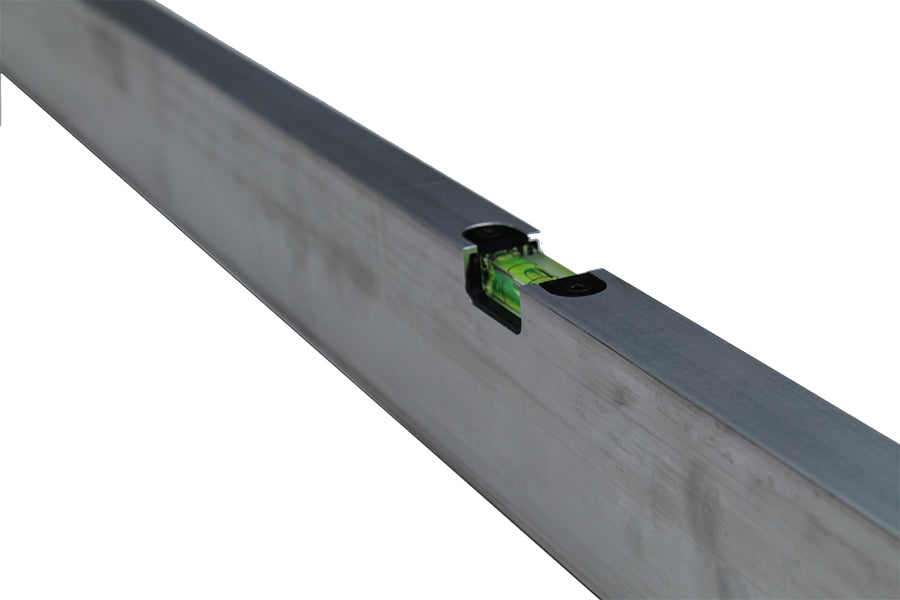

This is not an ordinary level - It can be re-calibrated!

The Quick-E-Level brought to you by Pave Tool, manufactured by Slip Industries is a Made in America level that offers a quality tool you can count on!

• Level can be manually re-calibrated
• Light-weight, durable extruded aluminum alloy
• Welded end caps
• Will hold a true edge indefinitely
• Actual end size: 1" x 3"
• Includes accurate level insert
• Great for screeding too!

This is not an ordinary level - It can be re-calibrated!

The Quick-E-Level brought to you by Pave Tool, manufactured by Slip Industries is a Made in America level that offers a quality tool you can count on!

• Level can be manually re-calibrated
• Light-weight, durable extruded aluminum alloy
• Welded end caps
• Will hold a true edge indefinitely
• Actual end size: 1" x 3"
• Includes accurate level insert

This is not an ordinary level - It can be re-calibrated!

The Quick-E-Level brought to you by Pave Tool, manufactured by Slip Industries is a Made in America level that offers a quality tool you can count on!

• Level can be manually re-calibrated
• Light-weight, durable extruded aluminum alloy
• Welded end caps
• Will hold a true edge indefinitely
• Actual end size: 1" x 3"
• Includes accurate level insert
• Includes 2 hand holds
• Great for screeding too!

This is not an ordinary level - It can be re-calibrated!

The Quick-E-Level brought to you by Pave Tool, manufactured by Slip Industries is a Made in America level that offers a quality tool you can count on!

• Level can be manually re-calibrated
• Light-weight, durable extruded aluminum alloy
• Welded end caps
• Will hold a true edge indefinitely
• Actual end size: 1" x 3"
• Includes accurate level insert
• Great for screeding too!

One of the biggest reasons a project fails is an improperly installed edge restraint (PVC or aluminum edging).

Scroll Down to View Videos Please

If your edging does not sit down tight on your compacted gravel base, the sand will migrate out and cause your edge to lose all stability. Thus causing the installation to fail.

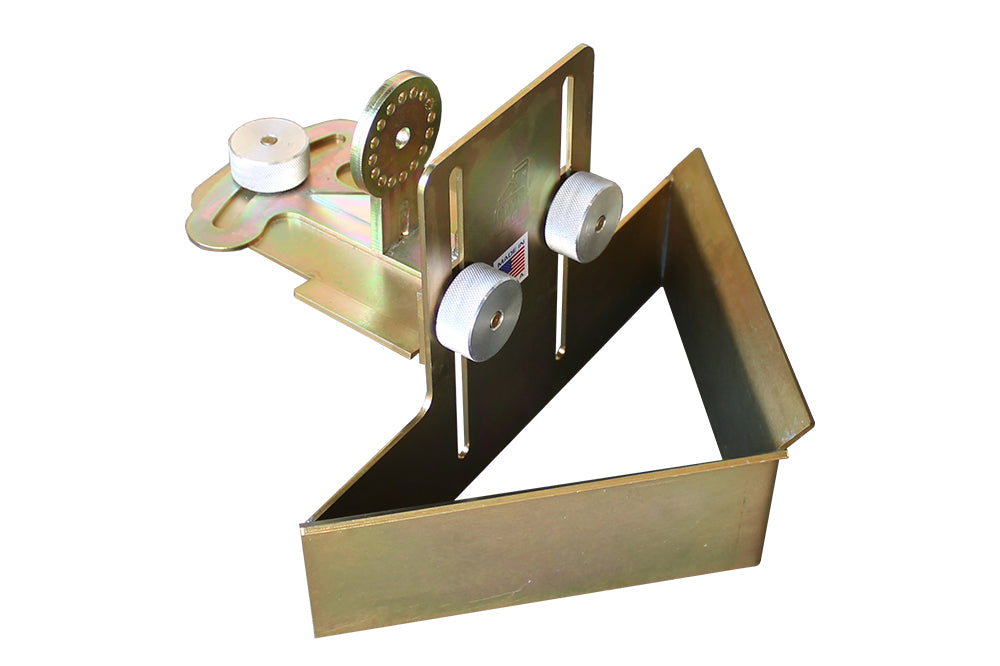

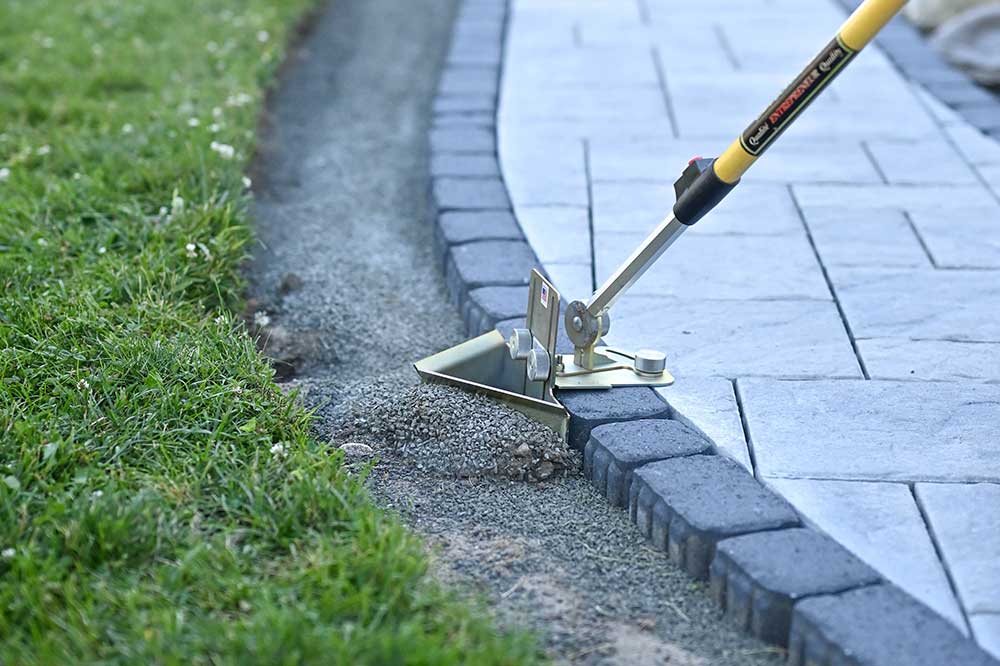

The Quick-E-Sand Plow:

• Helps prevent edge restraint failure
• Pull the sand away from the paver edge to create a perfect setting bed for edging
• Adjust quickly for multiple depth pavers
• Alleviates knee, back, and hand strain
• Calibrated for depths from 2 3/4" - 6"

NOTE: this tool accommodates the interchangeable Quick-E-Handle (sold together or separately).

INSTRUCTIONS:  To use the Quick-E-Sand Plow simply loosen the two large black knobs and slide the plate up or down until the desired paver height (in millimeters) is lined up with the top of the plate. By doing this, you will automatically be set to the correct height if you are using 1" screed pipes. Once set, firmly drag the Quick-E-Sand Plow along the edge of your paver surface to plow the sand away and expose the compacted gravel below. This prepares a perfect base on which the PVC edging is to rest and get spiked into. Be sure to keep the plow firmly against the paver edge at all times. Calibrated for depths from 2-3/4" to 6" (7 cm to 15 cm).

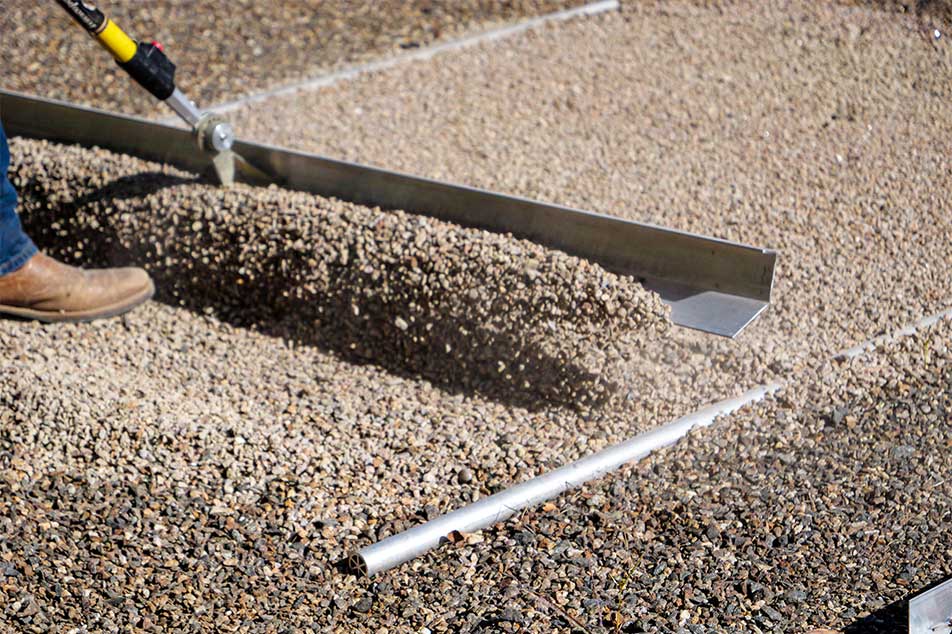

No more screeding on your knees!

• Efficient way to screed 1" setting bed standing up
• Three interchangeable screed blades: 3', 4 1/2', and 6'
• Bent in such a way to initiate down pressure and strength
• Has a rolled back edge to easily fill screed rail voids

Install 15' of perfectly level base quickly and efficiently. Every. Single. Time.

Scroll Down to View Videos Please

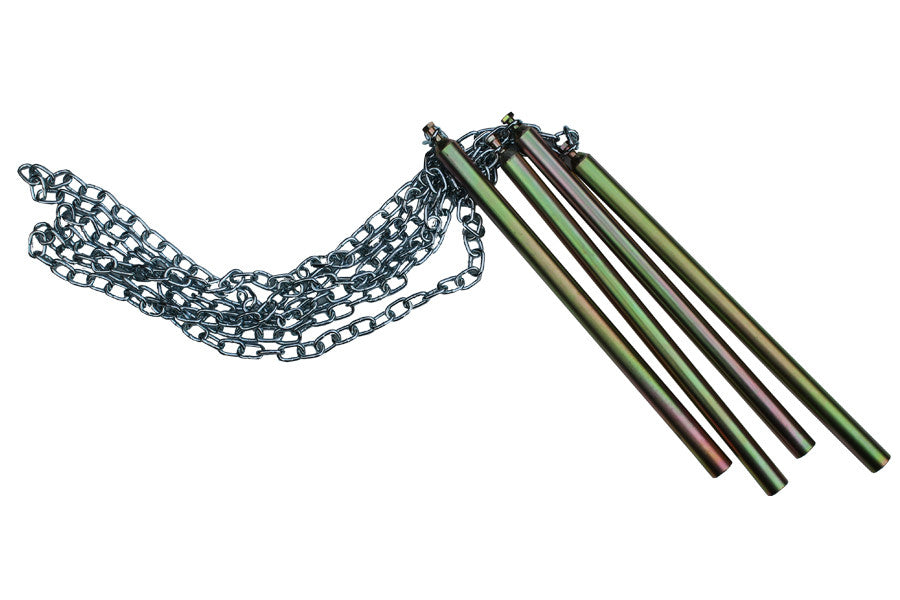

The Quick-E-Wall Screed tool may be better described as a retaining wall installation system. The tool's simple construction makes preparing a 15' length of base a very simple task.

• Prepares a perfectly level base quickly and efficiently - each and every time.
• No comparison to the accuracy and ease of installation
• Eliminates carpal tunnel & tennis elbow that could be attributed to old install procedures
• Four screed pipes are connected to each other by 5' lengths of chain to keeps them the optimal distance apart for using the Quick-E-Screeder Package or the 6' Quick-E-Straightedge.
• The chain is used as an offset or layout guide for the wall being built.

After compacting the excavated subsoil for your retaining wall, bring the base material to within 1/2" of grade. Lay the Quick-E-Wall Screed chains out in the desired line or curve of the wall. Next set the grade for each of the screed pipes. Each pipe should be checked at both ends for the proper hieght and will have to be "dug" in to ensure that the top of pipe is at grade. Screed the gravel to finished height and lightly tamp it to firm it up. Spread a light covering of bedding sand over the entire area and screed off to grade. Gently place your first course of retaining wall block using the chain as an offset guide and flipping each screed pipe out of the way as you proceed down the wall. Leave the last screed pipe in place and move the chain and pipes into place for the next section of wall. Confirm that the first course of the wall is perfectly level in every direction, using a 6' aluminum level.

The flexibility of the chains can also help you lay out the curves in any paver installation. Simply lay the chain in a nice, flowing arc. Using your cut off saw, score the surface of the pavers using your Quick-E-Wall Screed as a +/- ½” offset. Finish the cut as usual.

One TOUGH Level - See Below for Videos & Smart Level Updates

Auto zero - Sets your reference to any point you set the display

Flexible Increments - Reads in feet, inches, fractions, tenths, centimeters

Range - Pick a margin of error and LED lets you know when out of range

View reading in real time or store data for later.  Allows remote control of lifting equipment and monitoring equipment.  Generate graphs & charts on your laptop or smart device in real time.

Powerful - Programmable MCU allows customizing functions & Apps for industrial applications

Compass & Angle Indicator - for referencing locations

Backlight Display - For reading in dark and dim conditions

Fast Settling Algorithm - For very quick accurate readings

Anti-Theft Protection - No one else can use your level without your permission.  If stolen the level will tell you its location

KEY ADVANTAGES

Works in difficult Spots - No Clear line of Sight needed.  Works around corners behind obstructions.

Accurate Readings - Measurements immediately.  No elaborate setup to start or complicated breakdown when finished.  Typical accuracy +/- .1, (1/10) inch.

In Business since 1996

Reads 30 Vertical Feet - 100ft tubing = 200 ft working area

Make sure you’re using your Smart Level to the fullest!

If you have any questions please feel free to respond to this email, we are always more than happy to assist.

Newest App ‎Smart Leveler on the App Store (apple.com)   Android: Smart Level - Apps on Google Play (Android now includes Image Mapping, 3D Terrain Mapping not yet available)



Cut costs, boost profits and join the measurement revolution. Whether you're supplementing or replacing a laser, you can't afford to be without ZIPLEVEL^®.

Scroll Down to View Videos Please

• Measure over any distance or elevation on earth, from paper thickness to the height of a mountain.
• Fast, powerful, proven, rugged, reliable, affordable and made in the USA.
• 100' Cord
• Includes:
• Rubber protective boot for the Measurement Module
• Unipod for measuring without bending (doubles as a 4' vertical calibration standard for the system)
• Pair of stakes to secure the Base Unit on a hillside.
• One year parts & labor for mfg defects; 2 year prorated for hydro-pneumatic parts & labor.
• Works in Range of -22 degrees to 158 degrees

The unit itself does NOT need calibration, The Gas Line every 2-3 years needs to be re-pressurized because it is a gas line. If there is a hole in the cord it Voids the Warranty.

Scroll Down to View Videos Please

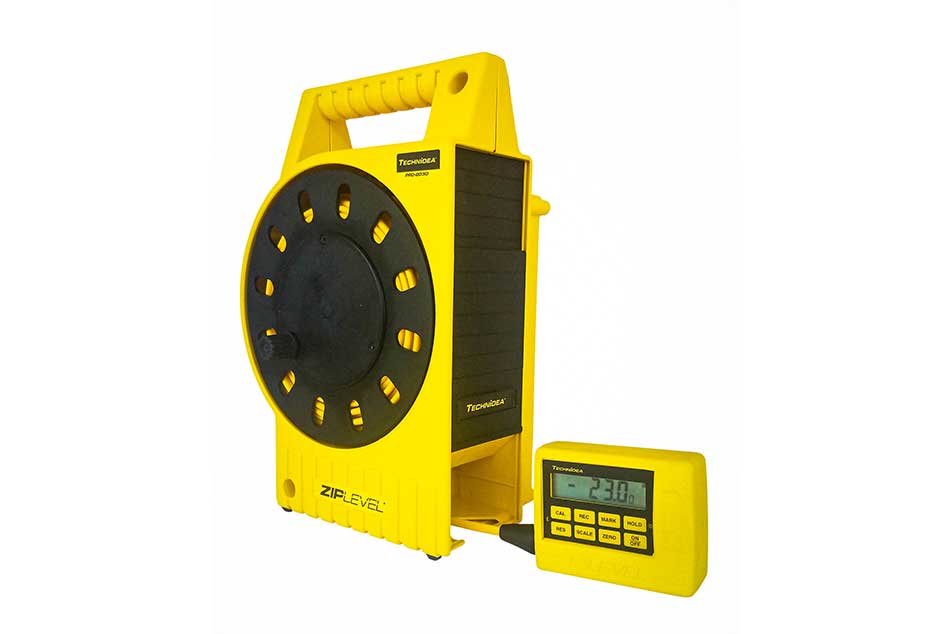

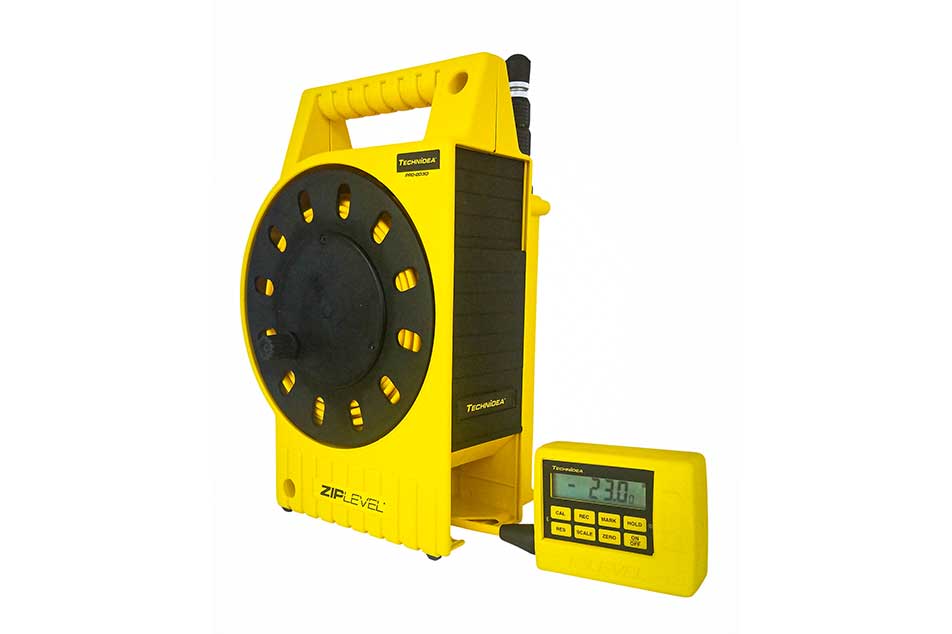

ZIPLEVEL® PRO-2000B High Precision Altimeter, Replaces Rotary Lasers

• Measure over any distance or elevation on earth, from paper thickness to the height of a mountain.
• Fast, powerful, proven, rugged, reliable, affordable and made in the USA.
• 75' Cord
• Accessories not included (Boot, Unipod, Stakes)
• Works in Range of -22 degrees to 158 degrees

Cut costs, boost profits and join the measurement revolution. Whether you're supplementing or replacing a laser, you can't afford to be without ZIPLEVEL^®.

Same features as the PRO-2000 except:

• 75' Cord

• Optional Module Boot, Unipod & Stakes.

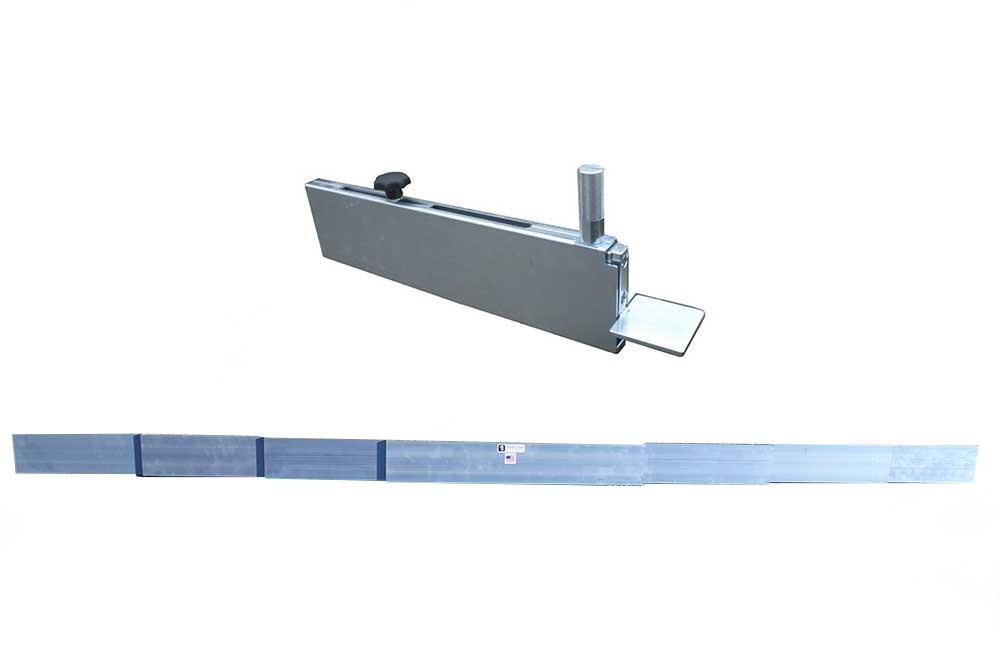

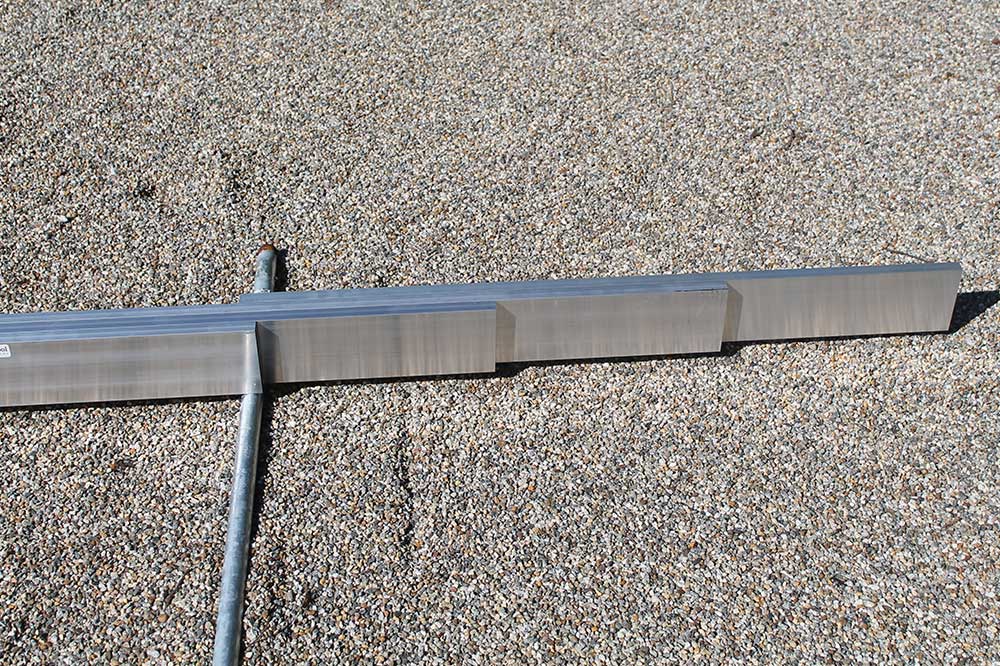

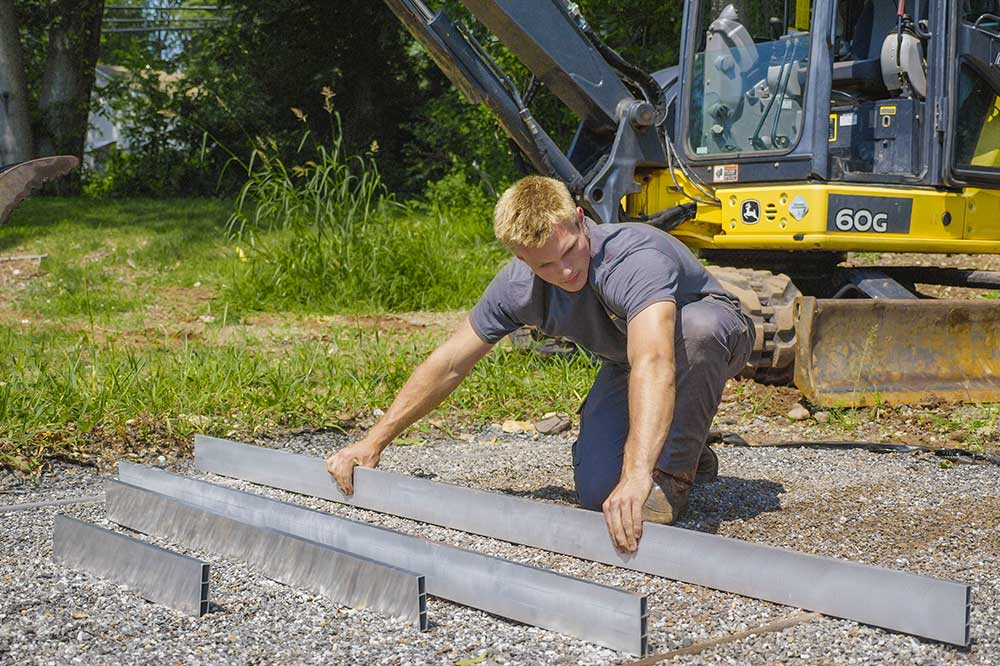

Quick-E-Screed Board Kit has you covered!

Comes as a set of four:  24", 48", 72" & 95" Screeds

Boards Measure: .7 Width x 3.9" Height x Length

Pair it with the Maxi Gauge.
