Handle Heavy Block and Stone With Care
Move large, heavy pieces with a clamp built for the load and the material’s finish.

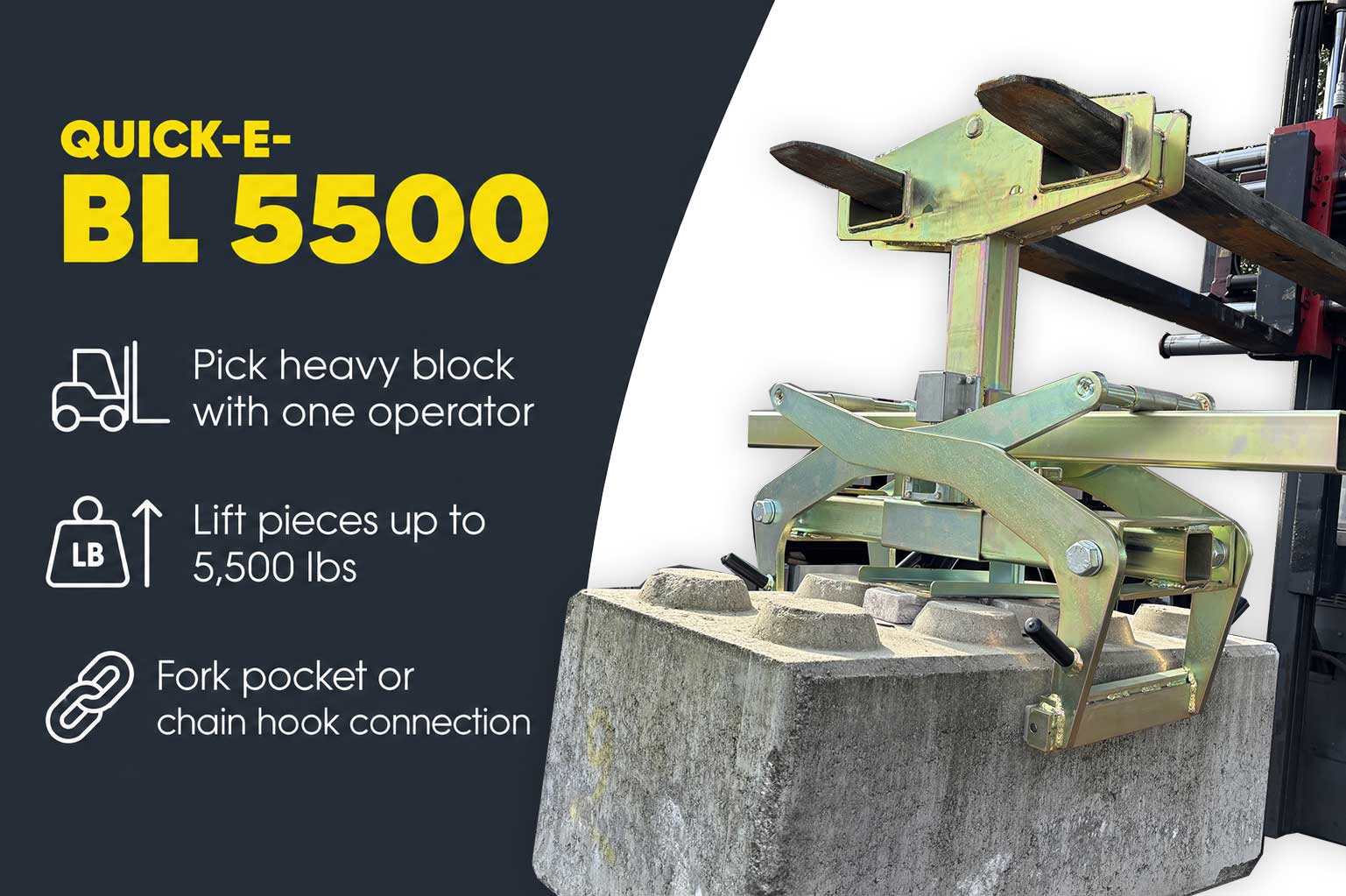

Large block, step treads, and dimensional stone are demanding to move. The Quick-E-BL 5500 combines a 5,500 lb lifting capacity with white non-marring pads, giving your machine a way to handle heavy pieces while protecting their finished surfaces.
Autolatch Feature and Non-Marring Pads
The clamp includes an autolatch feature for the pickup process. Its white non-marring pads contact the material to help prevent marks during handling.
Choose Your Connection
Use the built-in fork pocket for forklift pickup or the chain hook connection point for a chain-connected lifting setup.
Built for Large, Heavy Pieces
The Quick-E-BL 5500 is suited for lifting:
- Large-format pieces
- Outcropping stones
- Step treads
- Mafia blocks
- Large dimensional natural stone
Product Details

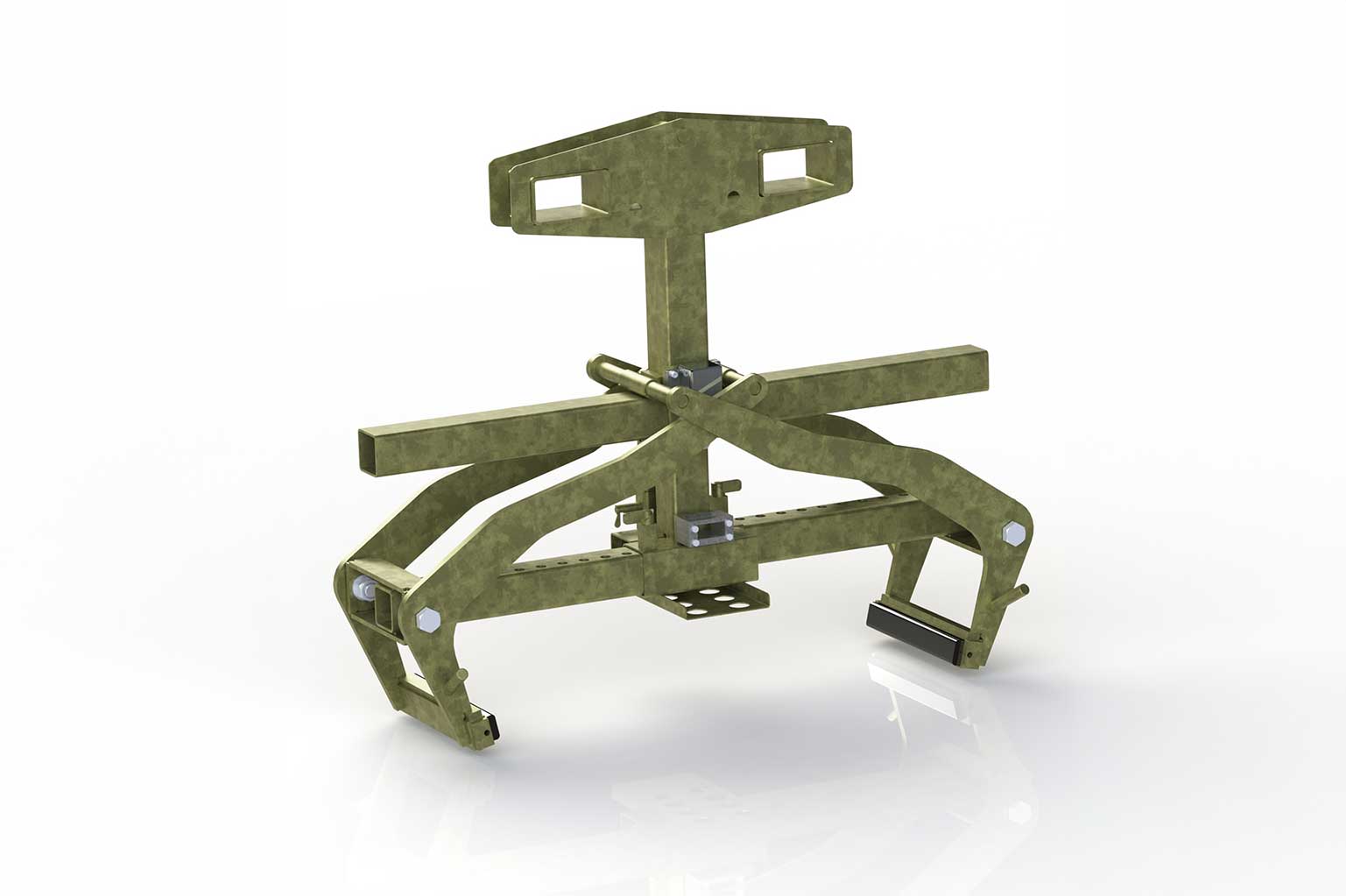

- Clamp type: Scissor lifting clamp
- Lifting capacity: 5,500 lbs
- Jaw opening shown in manufacturer drawing: Approximately 8.7"–48"
- Jaw depth: Approximately 8.8"
- Features: Autolatch and white non-marring pads
- Connection options: Fork pocket and chain hook connection point
Have a specific piece in mind? Contact us to confirm the BL 5500 is the right fit for your material dimensions and lifting setup.
